1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam

Get high-quality 1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam from our factory. Perfect for all your engraving needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CK1325
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
Working Size
1300X2500mm
Cooling Mode
Water Cooling Spindle
Spindle Power
1.5/2.2kw/3kw/4.5kw/5.5kw/7.5kw
Air Cooling Is Ok
Yes
Machine Colour
as Customers Choice, We Are White and Blue
Software
DSP or Nc Studio or March3 as Your Option
Rotary
Yes:500mm /200mm 80mm
Transmission
Z Axis : Ball Screw, Xy : Gear and Rack Rail
Rail
Taiwan Hiwin Square Rail
Working Table
Vacum Pump or Materails Holders
Transport Package
Plywood Packing
Specification
iso /SGS/FDA/CE
Trademark
chanke
Origin
China
HS Code
847989999
Production Capacity
50sets/Months

Product Description

1.Wood cnc router

(1) This wood cnc router working size is: 1300x2500x200mm, vacuum table, with3 kw water cooling spindle power,  using the vacuum pump to absorb the mould on the table, it is convenience for wood cnc router users that it is  don't need the materials holders, put the mould on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness mould , 3D embossment. This vacuum table wood cnc router  fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.

We can produce the machine water cooling spindle power with 4.5kw/5.5kw/7.5kw or more bigger, all as customer's request, 3kw water cooling spindle can cut and engrave on the wood/ MDF Arylic/ alumnium copper brass and other metal and nonmetal materials. when you want to cut 30mm wood or MDF, please choose the 4.5kw water cooling spindle power, if you want to cut : 40mm thickness of wood/MDF please choose 5.5 kw water cooling spindle power( if you want to cut it down using one time). more bigger power, more thick of the wood/MDF and matherals to be cut.

1.5kw /2.2kw mainly used on the engraving work, but it aslo can cut the wood/MDF acrylic,but it need to cut many times then can cut it down. small power mainly used to do the engraving work.


(2) But aluminium profile wood working machine can work on the 3D embossment and the irregular , out of faltness mould.

(3) This machine cooling mode is: water cooling spindle .we aslo can produce the machine with air cooling spindle, when you choose the machine , please let us know which type of cooling power you needed, or tell me your exactly requirments please, and let our engineer let you to choose .

(4) This type of wood cnc router  using the Taiwan HIWIN real brand liner guide rail. can promise the machine has a high precision. and TBI ball screw .
(5) we can produce the wood cnc router with 1 spindle 2 heads/ 3 heads/ 6 heads/4 heads and aslo can produce the machine with 1 spindle i head, 2 spindle 2 heads and 3 spindle or 4 spindle and so on.

(5) Maybe you are doubts whats the 1 spindle with many heads, this meaning, 1 water /air cooling spindle control many heads can provide the working efferiency of engraving and cutting. but 12 spindle 2 heads is one spindle control each heads , so its working speed and efferinecy is higher than the 1 spindle control many heads. but price is expensive than 1 spindle control many heads type of wood cnc router.


(6) Our factory can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... If you are professional buyers, please tell me your exactly requirments, like stepper motor using which brand, driver using which brand, and so on, if you don't know, then tell us, we according your requirments to produce for you.



2. Machine Features




1) Vacuum & T-slot Combined Table:  Small-scale processing by using material holder,

eliminating the need for a vacuum pump electricity;  large processing by adsorption, simple,convenient and efficient.

2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.

3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal

force in all directions and accuracy and strength of the machine.

4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.

5)  DSP controller system with USB interface,working without connecting with computer

during working and easy to control.



3.Parameter


Brand CHANKE
Model CK-1325 wood cnc router
Engraving area
(W*L*thickness)(mm)

1300*2500*200
Working Form Full-automatic
Spindle Power 3.0kw/4.5/5.5kw as customers choice
Spindle Rotate(rpm) 6000~24000mm/min
Motor  stepper motor or Servo motor imported from Japan as your choice
Tool Diameter(mm) Ø3.175,Ø4,Ø6/8mm, Ø12.7mm
Machine Structure Thicker Welded Steel tube Structure for 8mm thickness
Transmission System

X,Y Axis: Helical Rack and Pinion Drive
Z Axis: Taiwan TBI ball Screw

X,Y,Z Rail Taiwan HIWIN square rail
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
Engraving Speed(mm/min) 8000~12000mm/min
Feeding Speed manual
Data Transmission USB or PC connect
Support Format G code or HPGL
Working Voltage AC220V/50Hz or 380V/50Hz
software   CAD/CAM,Artcam,Castmate,Ug,Wentai,Type3.  UCancamV8
Range of Application Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight 1680Kg

4. Applicable materials

1) Furniture: plate, office furniture, doors, cabinets.

2) Wood products: speakers, games cabinets, computer tables, sewing machines,  musical instruments.

3) Board processing: insulation, plastic chemical components, PCB, car body,

bowling track, ABS, PP, PE, etc.

4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper  and aluminum.

5. How to Order Our Machine?

Before we can recommend you the best suitable machine, please kindly tell us:

1)  What materials will you work on?

2)  What is your Max.size of your processing materials? ( Length & Width )

3)  Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?

4)  Does your materials are cylinder? If YES, what's the Max. Diameter of it?

5)  If it is possible, could you send us your product samples' picture? It will

help us better to understand.

6. Trade Items of Machine

MOQ

1 set

Package

Standard Plywood Box

Delivery Terms

FOB, CIF, EXW, Door to Door ect.

Delivery Time

15 working days after receiving payment

Payment Type

T/T, Paypal, Western Union and others

Supply Ability

200 sets/month

Port

Qingdao, China.



7. Our service

we are factory manufacturer, so the quality of every parts of our products is monitered by our experienced technicians, we have confidence that our product will make you find a ready market. And we can also make special machines according to your detail needs. Moreover, our technicians can speak English, they can slove your problems directly in English.



8. Guarantee & service of Machine



Two years quality guaranty, the machine with main parts(excluding the

consumables) shall be changed free of charge when if any problem during the

warranty period.

Service: ( Provide whole life technical support, 24h online )

Before sale:

We would always be here to provide any information you need at the first time,

and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs, after everything is

ready, we would tell you everything goes well here;

After sale:

1) We would provide English Version working manual.

2) If you have any questions during using and maintaining, our engineers who

could speak very good English would answer you online or by calls.

3) Machine warranty is one year. So if your machine has any unintentional

damages, we would provide parts for free.

4) If your machine has big problems if by any chance, our engineers would arrive

 there to debug and fix.

5) Could be remote control if needed.



Spare parts:











From producing in our factory to shipping the goods directly to your port or company, we supply all-in-on service for our customers. With the rich experience of dealing with shipping issue and custom clearance,

we can make the most economical delivery plan for you and ensure the quick leading time. No matter your
quantity is our MOQ or very big, we take each customer as the only one.

1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam
1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam
1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam
1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam

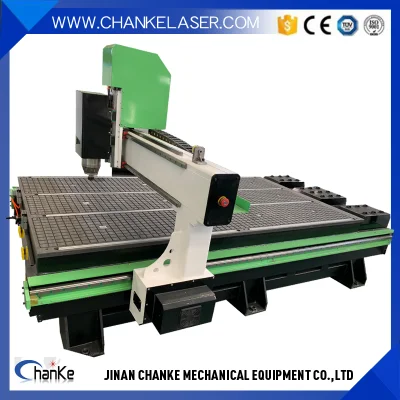

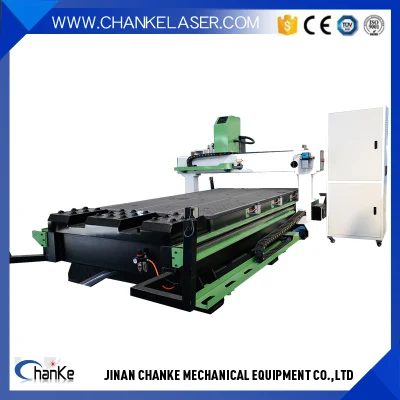

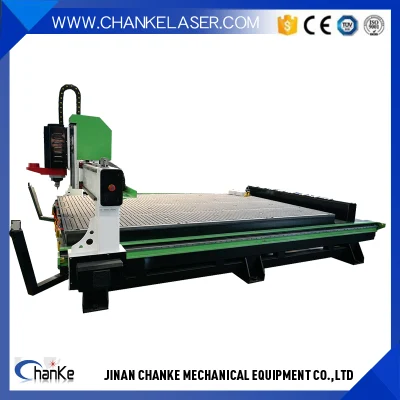

Whole machine photo



Here is the working video in youtube website:

https://chankelaser.en.made-in-china.com ( cnc router cutting stainless steel)
https://chankelaser.en.made-in-china.com( cnc router engraving on brass -3D embossment work )
https://chankelaser.en.made-in-china.com( 1300x2500mm cutting 50MM MDF )



customers:
our Saudi Arabia father and his son visit us and ordered two machines ( one for 260w metal and nonmetal laser cutting machine , one is 7.5kw air cooling spindle with spraying funcation wood cnc router to cutting steel and wood)


1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam
Packing:

All cnc router are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.



Customer feedback

1300X2500mm Wood Working CNC Engraving Machines for Door Acrylic Metal EVA Foam
