Wood Foam Furniture Statue Milling Machine CNC 5 Axis

Introducing our 5 Axis CNC Milling Machine, perfect for creating intricate Wood Foam Furniture Statues. As a factory, we specialize in precision manufacturing.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JCT1530L
Customized
Customized
Condition
New
Color
Customized
Machine Name
CNC Router Machine
Control System
Ncstuidio or Syntec
Spindle
9kw Air Cooling Spindle
Motor
Japan Yaskawa Servo Motor
4th Axis (Rotary Axis )
1000mm Diameter 2500mm Length
Table
Removable Table for Flat Working
Software
Powermill with Post Processor
Inverter
Taiwan Delta Inverter
5th Axis (Option)
The Spindle Can Move Forward and Backward
Option
3D Scanner & CNC Hot Wire Cutting Machine
Transport Package
Wood Case and Steel Support
Specification
4300 x 2700 x 2400mm
Trademark
CHAODA
Origin
Linyi
HS Code
8464909000
Production Capacity
5000sets/Month

Product Description

Wood foam furniture statue milling machine cnc 5 axis

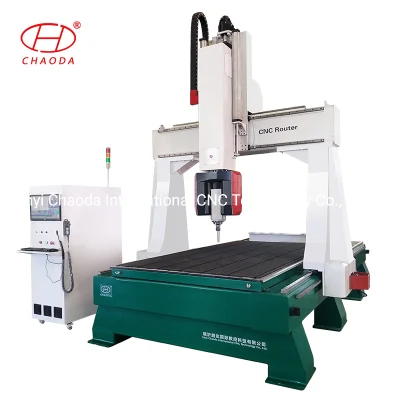

Wood Foam Furniture Statue Milling Machine CNC 5 Axis

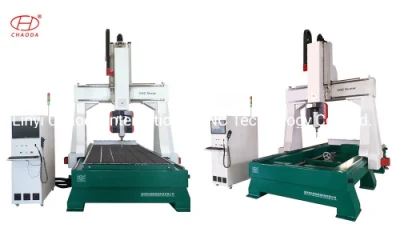

Wood Foam Furniture Statue Milling Machine CNC 5 Axis

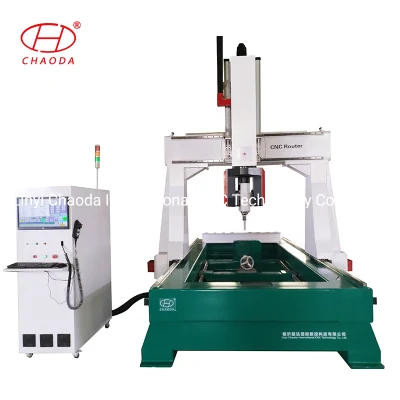

Wood Foam Furniture Statue Milling Machine CNC 5 Axis


>> Technical parameter

X Y Z A C working size

1500 x 3000 x 500mm x180°
1300 x 2500 x 500mm x 180° (Option)

Rotary working size

0-1000mm diameter/ 2500mm length

Lathe bed structure

T-extrusion, Thick Steel frame

Table surface

Aluminium T-slot with clamps

X Y structure

Rack and pinion, HIWIN linear square rail

Z structure

Ball screw, HIWIN linear square rail

Resolution

±0.02mm

Reposition accuracy

±0.05mm

Max. rapid

0-60000mm/min

Max. working speed

0-30000mm/min

Spindle power

9kw air cooling spindle

Spindle speed

0-24000RPM

Working mode

Japan YASKAWA Servo motor and driver

Command code

G code(*uoo,*nc,*mmg, *plt)

Operating system

4 or 5 axis NcStudio (WeiHong) or Syntec control system

Collet

ER32

Software

PowerMill

Oil system

Yes

5th Axis

The spindle can swing forward and backward


 >> Technical features

a) all machine parts adopt high configuration and top quality fromall over the world,to make
    machine with high performance and durability.
b) with a big rotary device, can process different kind of 3d sculptures,statues,columns.
c) with a flat table, can process plane materials.

 >>Advantages

1) Big rotary axis for carving life-size foam wood stone sculptures statues figures and other column / round  /

    cylinder / square

2) Removeable table: When you carve flat / plane material, you can install the table

3) Powerful PowerMill software for complex programs

4) Easy-to-use Ncstuidio or Syntec controller

5) 5th axis: The spindle can move forward and backward in different angle

>> What can be made by this machine
It can process many materials,like foam,woods, MDF, Composite boards,
PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates.,etc.

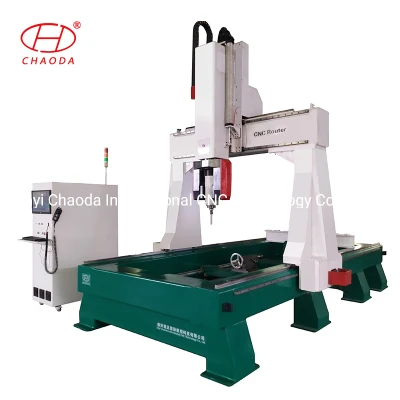

Wood Foam Furniture Statue Milling Machine CNC 5 Axis

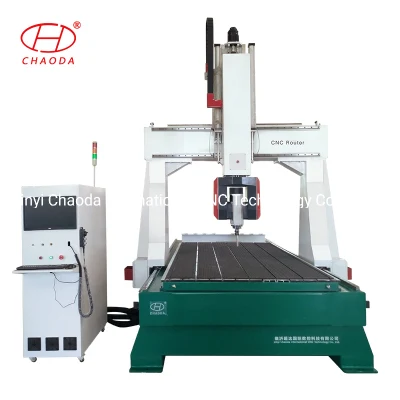

Wood Foam Furniture Statue Milling Machine CNC 5 Axis
Wood Foam Furniture Statue Milling Machine CNC 5 Axis
Wood Foam Furniture Statue Milling Machine CNC 5 Axis

>> Optional device: 3d scanner

Wood Foam Furniture Statue Milling Machine CNC 5 Axis

>> Customer visiting & training
Wood Foam Furniture Statue Milling Machine CNC 5 Axis
>> Certifications:
Wood Foam Furniture Statue Milling Machine CNC 5 Axis


>> Customer feedback

Wood Foam Furniture Statue Milling Machine CNC 5 Axis

>> If have any interest,contact us below

Linyi CHAODA International CNC Technology Co., Ltd was established in 2002 and covers
40000 Square meters.we have experienced and professional engineers who devote themselves
to machines' research, development, production, and after-sale service. Our machines have won
praise from customers worldwide and with very good reputation in this field.

Welcome to visit us !!
