Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry

Get precise and efficient Styrofoam CNC Router Foam Cutting Machines and EVA Engraving Machines for the mold industry. We are a reliable factory with top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
1325/1830/2040
Customized
Customized
Condition
New
Color
Customized
Model No.
Gd1325
Positioning Accuracy
0.05mm
Travel (Y Axis)(mm)
3000mm
Key Selling Points
Multifunctional
Relative Humidity
30%-75%
Control System
Nc Studio / DSP(Optional)
Range of Spindle Speed
1000 - 24000
Travel (X Axis)(mm)
1800mm
Running Temperature
0-45ºC
Spindle Motor Power
3.2kw
Packing Size
3.2*2*1.7m
Weight
1000kg
Drive Motors
Servo
Table Surface
T-Slot Table
Working Voltage
AC380V/60Hz, 3pH
Transport Package
Plywood Case
Specification
3200*2400*1850mm
Trademark
Guandiao
Origin
Shangdong, China
HS Code
8465990000
Production Capacity
10000pieces/Year

Product Description

Product Description

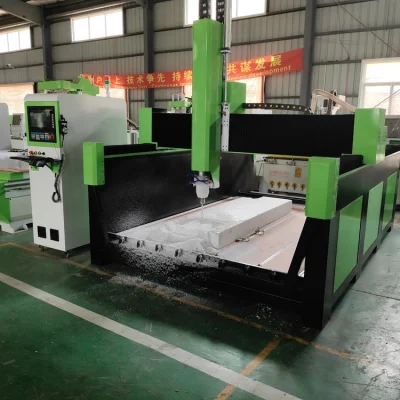

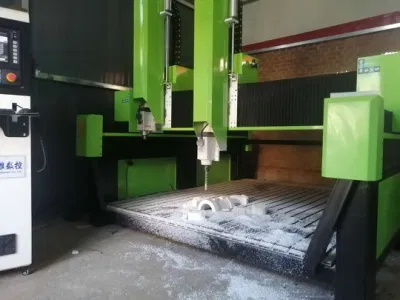

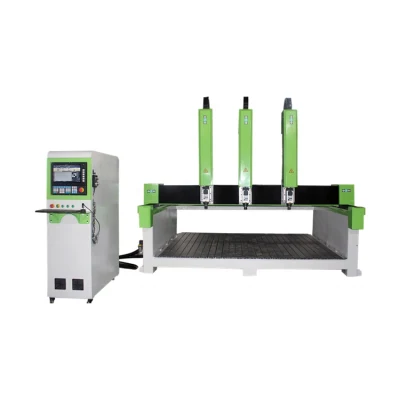

                                       Styofoam CNC router cutting machine

1. Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.

2. It is very suitable for CNC hobby friends, small engraving shop and factories as well.

3. Popular NC studio control system is very easy for every buyer and beginner.

4. Even small, we still use 1.5kw spindle to give it enough power. Ball screw gives it good resolution and less noise.

5.Mist water cooling sprayer and flume will cool the cutter,which is necessary when you cut or engrave on Aluminum,copper or other soft metal.
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry

technical parameters


Model GD-1325                               GD-1830                            GD-2040
Working Area 1300*2500*200 mm             1800*3000mm           4000*2000mm
Spindle power 3.2 kw,/4.5kw /5.5kw/6kw/7.5kw(Optional)
Feeding height 500-2000mm
Max processing speed 30 m/ min
Spindle speed 0-24000rpm
Resolution  precision ±0.05mm
Software environment windows98/2000/xp
 Software TYPE3/Artcam/Castmate/UG/CAD/CAMetc
Driver China stepping motors and leadshin driver
Code G Code, HPGL Code
Power Supply AC380V/50Hz
Control System NC Studio / DSP(optional)
Software JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment Windows98/2000/XP
Relative humidity 30%-75%
Running Environment Temperature 0-45ºC
Packing Wooden Box
Weight Net weight:800 kg        Gross Weight:1000 kg
Packing size 3.2*2*1.7m
Applicable Materials wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,
aluminum composite panel, etc.
Stand accsssories 5.5Kw air pump, USB line,
Tool box(Spanner,brush, etc).
cutting tools.
 Dust collector.
 Manual
Application
Mold industry: carving all kinds of mold, disposable mold, automobile foam mold, large wooden ship mold, aviation wooden mold, propeller, train mold, etc.
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry

Details
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry

Packaging & Shipping
Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry

After sale-service

1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.

2.We will provide free training, free maintenance, free technical upgrading,

3.We accept the ODM, OEM

4.Oversea agents wanted, if any interest, pls let me know


About us
Shandong
Guandiao CNC Equipment Co., Ltd is
main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.



Styrofoam CNC Router Foam Cutting Machine/EVA Engraving Machine Mold Industry


 After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.

    We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.

FAQ

1. This is the first time I buy the machine, is it easy to operate?

   A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.

2. ARE YOU TRADING COMPANY OR MANUFACTURER ?

   A: We are factory.

3. Can I visit your factory?

   A: Yes! We greatly welcome customers to visit our factory!

4. What is your MOQ?

   A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
