Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Get precise and efficient gear cutting with our 5/6axis CNC Vertical Gear Hobbing Machine. Factory direct, 1-4 module, 100-320mm dia cutting.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YK3120
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Guarantee
1 Years
Delivery
10-20days
Service
Over Sea Service
Weight
7000kg
Transport Package
Standard Export Box
Specification
2720X1850X2820
Trademark
GEEPRO
Origin
China
HS Code
845969900
Production Capacity
300-500PCS/Year

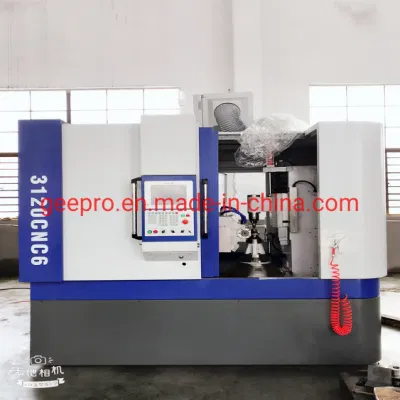

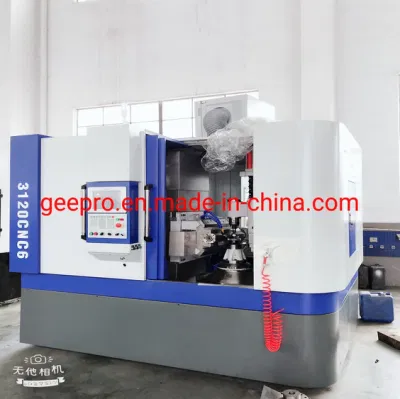

Product Description


ΔYK  series YK3120 is suitable for cutting such gears and gear shafts at smaller diameter but with large modules and double-open bush-embracing structure is adopted for the rear column of this machine, which helps a lot to cut large gear shafts.
ΔThis machine is suitable for cutting such workpieces, on continuous dividing tooth methods, as cylindrical straight gears, helical gears, worm gears & sprocket wheels, synchronous pulley, spline shafts in batch and/or single production.
ΔBesides, Herringbone gears without clearance groove can also be machined on this machine by using finger-milling cutter.
ΔIndexing device for single tooth is designed and set on this machine to achieve milling gears circularly and automatically by using disc-type milling cutters or finger-type milling cutters.
ΔThis machine is widely used for generating gears that are used in industries of mines, steels, wind powers, ships and so on.


Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Performance and Feature

1. With vertical design, the worktable can move in radial as radial feed movement.
2. Electrical system with fail-safe control and low failure rate is controlled by PLC of OMRON.
3. The modular valves available from Northman has high reliability and low failure rate in order to be convenient to diagnose failures and maintain hydraulic system.
4. The worktable is fitted with double-start worm as its index gearing. It is suitable for cutting the workpiece with less-teeth.
5. The hob spindle adopts circulating lubrication to ensure sufficient and reliable lubrication for spindle bearings in order to prolong their service life. Meanwhile circulating oil can quickly remove heat caused by spindle running to insure high rotary accuracy for the spindle.
6. Supply with special attachments according to the customers' special order.
7. Tangential hob head, hydraulic fixtures, workpiece arbors, live center, shift hob head.



Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
YK3120 The manin technical parameters
The largest processing module Mn 4/6
The largest machining diameter mm 200
Tilt angle of tool rest deg 45L/R
Axial stroke mm 300
Maximum speed of workpiece shaft rpm 200
Maximum speed of hob shaft rpm 2500
Distance from hob center to workbench center mm 20-170
Total power Kw 28
Maximum hob diameterlength mm 120180
Specification of tool bar mm 16.22.27
Machine tool appearance size mm 2780×2860×2760
Total weight of machine tool Kg 8000
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

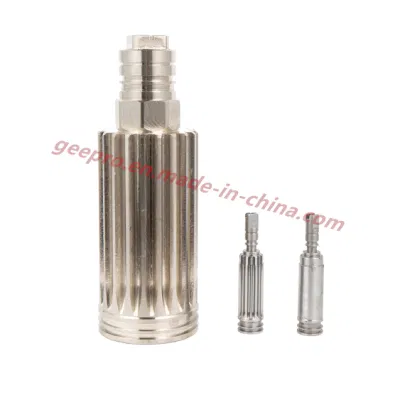

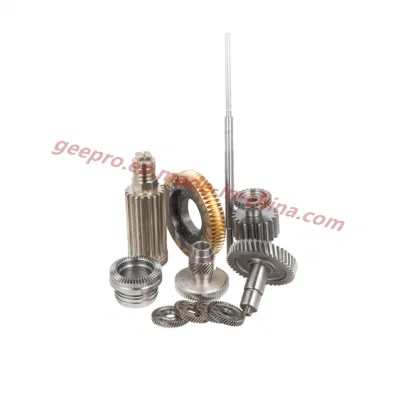

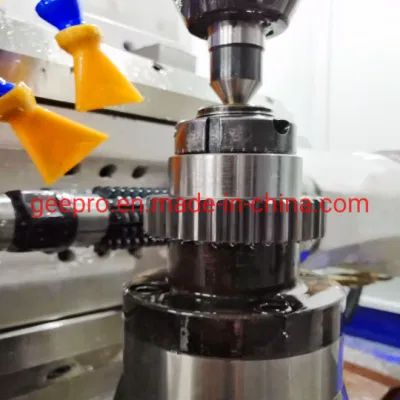

Gear Cutting Samples
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting

Stock 5/6axis CNC Vertical Gear Hobbing Machine for 1-4 Module 100-320mm Dia Cutting
