Manual Contour Cut Professional Vinyl Machine for Cutting

Shop the Manual Contour Cut Professional Vinyl Machine for Cutting from our factory. Create precision cuts for your vinyl projects. Fast shipping available.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MH721-A
Computerized
Computerized
630mm
24"
Transport Package
2-Layer Export Standard Cartons
Specification
CE
Trademark
Refine
Origin
Hefei, Anhui, China
HS Code
8479
Production Capacity
25000PCS/Year

Product Description

24" 48" Advertising PVC  Manual Contour cut machine for Cutting



This 28" professional vinyl machine with stand comes with an easy-to-use design and SIGNMASTER software. It allows you to cut professional customized designs and signs with your cutting plotter printer machines, giving you the ability to use your fonts, import custom artwork, and draw your shapes. The vinyl cutter machine for t-shirts comes with an illuminated LCD screen and large control panel buttons. Adjustable speed and force are available by the touch of a button. The digital readout makes for accurate and precise settings.



Main feature:
1. Install stepper motor, high speed, small noise
2. Three interfaces: USB / COM / U-disk
3. Arm main board, support coreldraw directly output
4. Casting carriage, high precision
5.Can cut 1mm thickness
6. One year warranty
7. In-time after sale service


Using material: vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.


Model MH450-A MH721-A MH870-A MH1351-A
Max. media width 450mm 720mm 870mm 1350mm
Max. cutting width 360mm 630mm 780mm 1260mm
Main board ARM
Language CH/EN
Contour type Manual Contour cut
Accuracy  +/-0.01mm
Feeding accuracy 3m
Interface USB/COM/U-disk
Feeding Roller Al roller
Drive motor Stepper motor
Carriage Casting Car
Stand Al bracket with basket
Speed 20-800mm/s
Force 20-500g
Power supply AC 90-264V
Applicable software ARTCUT, Graph-Cut, Coreldraw, Flexi, Signcut, SIgnmaster
Machine power  < 100W
Packing Size 750*330*360mm 960*330*420mm 1110*330*420mm 1600*330*420mm

High Efficiency
With large paper feed and cutting width, this vinyl plotter features high cutting precision and paper feed precision. D-typed motherboard and stepper motors are equipped.
USB & Serial Ports
COMPIM and USB ports are available. This vinyl printer adopts a standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports.
Adjustable Force & Speed
The digital control panel allows the adjustment of cutting force and speed for more precise and controllable cutting.

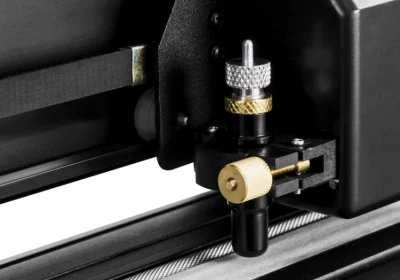

Precise Blade
The vinyl printer cutter machine is equipped with standard blades with a diameter of 2mm, Roland compatible. Also structured with a closed blades holder, not easy to slip.

Anti-deviation Design
Two adjustable double-spring pinch rollers, aluminum knurling stick, high precision pressing wheels, and scale line ensure the anti-deviation of paper feed by long distance.

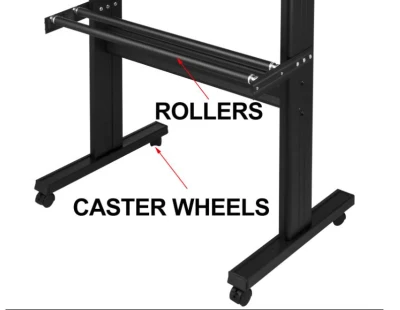

Sturdy Floor Stand
The vinyl plotter cutter machine adopts a heavy-duty sheet metal floor stand, featuring four caster wheels for convenient movement.

Manual Contour Cut Professional Vinyl Machine for Cutting Manual Contour Cut Professional Vinyl Machine for Cutting Manual Contour Cut Professional Vinyl Machine for Cutting Manual Contour Cut Professional Vinyl Machine for Cutting Manual Contour Cut Professional Vinyl Machine for Cutting Manual Contour Cut Professional Vinyl Machine for Cutting
Parameters:

Parts:
  • 1 x Cutting Plotter
  • 1 x User's Manual
  • 1 x  Software
  • 1 x Power Cord
  • 1 x Serial Cable
  • 1 x Blades Holder
  • 1 x Pen Holder
  • 1 x Stand
  • 3 x Blades


Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2)  For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping.It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.

Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.


Company introduction:
Hefei Gere-tech International Co.Ltd.Is a firm with 10+ years of histroy.We devote ourselves in R&D on signage  and Sublimation industries.Our Refine brand cutting plotters and heat press are very popular in North America,Europe, Latin America, Asia and Africa.
We alway provide quality products, reasonable prices as well as best possible after-service!We offer quality guarantee.Our service time  is  weekly 7days x 15hours/day .
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise!We guarantee!
"Gere-tech"  is your correct and long-term buiness partner





Manual Contour Cut Professional Vinyl Machine for Cutting
