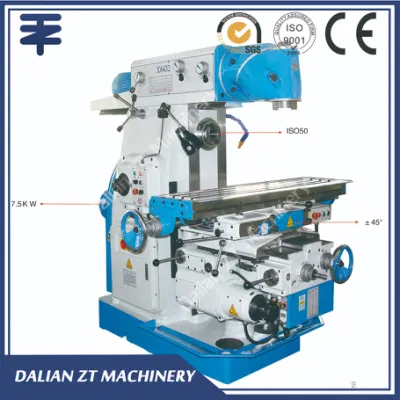

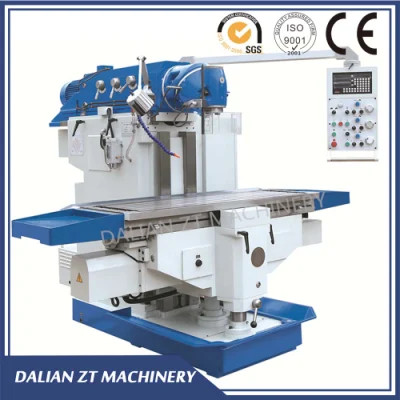

Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting

Introducing our top-of-the-line Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling Machine for Metal Cutting. As a factory, we specialize in high-quality, precision machinery for metalworking.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RMX50
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
500X1600mm
T-Slot
5/18/80mm
Table Travel (X/Y/Z)
1200X700X500mm
Worktable Size
500x1600mm
Transport Package
Wooden Case
Specification
2625x2460x2080mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8459699000
Production Capacity
1000 Sets

Product Description

Main Feature
  1. 3 axes with ball screws, high precision
  2. 3-axis feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
Mechanical change speeds in head stock, powerful milling
Table with an extra supporting column, big load, high accuracy
It can mill any angle surface through front half-sphere by swiveling milling head


Specifications Unit              RMX50
Table size mm 500*1600
T-slots(NO./width/pitch) mm 5*18*80
Table travel (X/Y/Z) mm 1200*700*500
Swivel angle of milling head - 360°
Spindle taper - ISO50
Spindle speed range r.p.m (27) 30-2050
Table feed(X/Y/Z) mm/min 10-1000/10-1000/5-500
Table rapid speed   2200/2200/1100
Distance between spindle nose and table surface mm 50-550
Distance from spindle center line to column mm 45--745
Main motor power Kw 7.5
Feed motor Kw AC servo motor X/Y:15NM; Z: 18NM
Max load Kg 1800
Overall size mm 2625*2460*2080
weight kg 4200
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting

Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting
Knee Type Conventional RAM Type Universal Horizontal Vertical CNC Heavy Cutting Large Worktable Milling/Mill Machine for Metal Cutting


FAQ
1. How can I choose the most suitable machines ?
A:  You can choose the exact model by yourself.  Or you can tell us your specifications, to let us choose the best model for you, too.

You can also send us the product drawing, and we will choose the most suitable machines for you.
 .
 2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.


3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.



6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.


7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)


8. How is the warranty?
A: 12 months after shipment date


9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
