High Precision Large Worktable Heavy Duty Milling Horizontal Drilling and Milling Cutting Mill 3 Axis Metal Cutting Milling Machine

Introducing our High Precision Large Worktable Heavy Duty Milling Horizontal Drilling and Milling Cutting Mill 3 Axis Metal Cutting Milling Machine. Quality manufacturing from our factory.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
X6132
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Name
Universal Horizontal Milling Machine
Spindle
ISO40
Table Size
320X1325mm
Max Longitudinal Travel(Manual/Auto)
700/680mm
Max Transverse Travel(Manual/Auto)
255/240mm
Max Vertical Travel(Manual/Auto)
320/300mm
Distance Between Spindle Axis Table
30/350mm
Spindle Speed Step
18 Steps
Main Motor Power
7.5kw
Overall Size (L x W x H)
2294X1770X1610mm
N.W/G.W
2650/2950kgs
Transport Package
2pcsin One Wooden Case
Specification
ISO9001
Trademark
T brand
Origin
Shandong, China
HS Code
84592900
Production Capacity
100 Sets/Month

Product Description

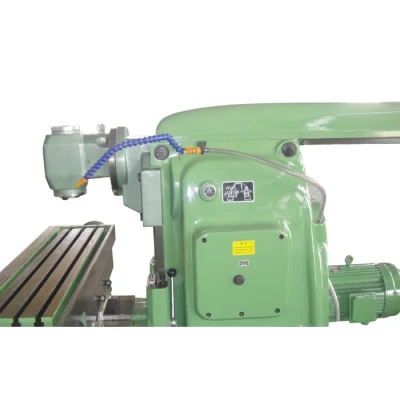

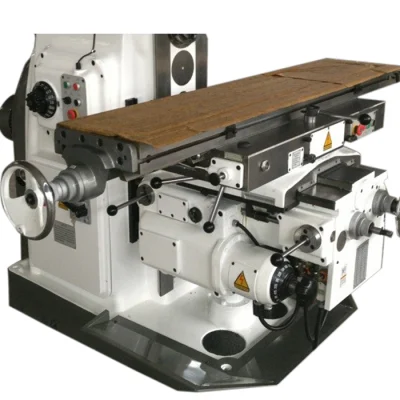

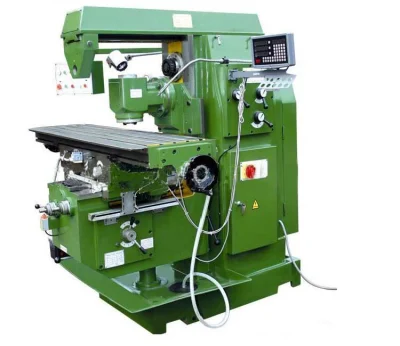

Universal Horizontal Milling Knee-type Milling Machine (X6132)
High Precision Large Worktable Heavy Duty Milling Horizontal Drilling and Milling Cutting Mill 3 Axis Metal Cutting Milling Machine


Main features:
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)

Specification:
Universal Horizontal Milling Knee-type Milling Machine (X6132)
specification unit X6132 X6132B X6132H X6132BH
Table size mm 320X1325 320X1600 320X1325 320X1600
Max Longitudinal travel(manual/auto) mm 700/680 900/880 700/680 900/880
Max transverse travel(manual/auto) mm 255/240
Max vertical travel(manual/auto) mm 320/300 410/390
Max rotary angle   ±45°
Distance between spindle axis table mm 30/350 30/440
Spindle speed step   18 steps
Spindle speed range   30-1500
Feed range of table travel steps 18 steps
Main motor power kw 7.5
Feed motor power kw 1.5
Overall size (L x W x H) mm 2294X1770X1610 2294X2050X1610 2294X1770X1790 2294X2050X1790
N.W/G.W kg 2650/2950 2740/3040 2850/3150 2940/3240
Specification Unit X6140 X6132
Table size mm 1700X400 1320x320
No.of T-slots   3 3
Width of T-slots mm 18 18
Max.load kg 800 500
Longitudinal travel(manual/auto) mm 900/800 700/680
Cross travel(manual/auto) mm 315/300 255/244
Vertical travel(manual/auto) mm 350/330 320/300
Table feed range(X/Y/Z) mm/min 23.5-1180/23.5-1180/8-394 23.5-1180/15-786/8-394
Rapid feed speed mm/min 2300/2300/770 2300/1533/770
Spindle speed range r/mm 30-1500 .0-1500
Spindle speed step  steps 18 (steps) 18
Distance between spindle axis table surface mm 30-380 215-470
Power of spindle motor kw 11 7.5
Overall dimension(LXWXH) mm 2556X2159X1770 2294X1770X1720
Net weight kg 3850 2650


Universal Horizontal Milling Knee-type Milling Machine (X6132)
Standard accessories
Work light, coolant, drill chuck,
mill chuck, spindle arbors
, horizontal arbors, wrenches.

Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit
