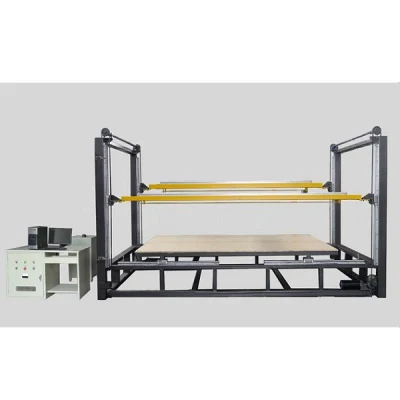

Epsole CNC Hot Wire EPS Styrofoam Cutter Machine

Epsole CNC Hot Wire EPS Styrofoam Cutter Machine, factory direct, high-quality cutting for EPS Styrofoam materials. Buy now for precise results.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product advantages
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
ESCNC200-400SL
Computerized
Computerized
Certification
CE
Transport Package
Ocean Shipping
Trademark
EPSOLE
Origin
China
Production Capacity
150 Set / Year

Product Description

Product Description
  Epsole CNC Hot Wire EPS Styrofoam Cutter Machine Epsole CNC Hot Wire EPS Styrofoam Cutter Machine
Item Unit ESCNC200SL ESCNC300SL ESCNC400SL
Max cutting block size mm 2000×1500×(1250-1500) 3000×1500×(1250-1500) 4000×1500×(1250-1500)
Cutting wire mm ф0.4G20Ni80 ф0.4G20Ni80 ф0.4G20Ni80
Stepping motor torque N.m 18 18 18
Power kw 5 5 3
Cutting speed M/min 0-4 0-4 0-4
Capacity KVA 3 3 3
Transformer voltage V 0-70(adjustable) 0-70(adjustable) 0-70(adjustable)
Overall dimension mm 3500×2500×2600 4500×2500×2600 5500×2500×2600
Weight kg 500 650 750



Product advantages

Functions & Features:
A.The Aluminum Frame Is Highly Stable And Accurate.

B.The Cutting Line Adopts Stepping Motor Which Is Very Stable And Could Be Timing Freely, This Matches The Requirement For Cutting Special Shapes With Frequeniy Changeable Timing, The Accuracy Is 0.5mm.

C.Voltage Regulation: The Cutting Line Is Equipped With A 3kw Transformer, Electrically Adjustable Output Voltage Is 0-70v, 20 Heating Wires Could Be Equipped, So 20 Same Images Or Characters Could Be Cut Simultaneously.

D.The Cutting Line Is Equipped With Famed Brand Pc Installed With English Version Drawing And Cutting Software Which Is Very Easily Operated, Customers Only Need To Draw Images With The Drawing Software And Transfer Them Into Cutting Codes By Cutting Software, The Cutting Line Wil Automatically Finish All The Other Jobs.

E.The Touch Screen Shows The Images Being Cut And Can Trace The Cutting Process. Cutting Speed Is Adjustable, Maximum Speed Could Be 1000mm/Min. Parameter Setting Is Quite Simple.

F. The Cutting Line Has Stroke Protection Function, When The Running Stroke Exceeds Regulated Stroke, The Cutting Line Shall Stop Running Automatically,Besides, The Cutting Line Also Has Functions Like Power-Off Memory, Reverse Cut And Rotation, Mirror Symmetry And Backlash Compensation,Etc.


High Precision Wire setting system (Patent Product, finish wire setting in 2 minutes. In China, only we have HIGH PRESION WIRE SETTING SYSTEM, in other company, they have auto wire setting system, but after wire setting, they should manually check thickness again.)

Attention
1.EPS block should be dried before cutting to increase efficiency and avoid damage of hot wires;
2.Check cutting machine before operation to ensure reliability of ground connection, correct running direction of main cutter, air blower and limit switch;
3.Strictly prevent foam beads and cutting fragments entering into the electric system to avoid conflagration because this equipment is a strong electric current working system;
4.Maintenance and attention points of variable-speed gear box.
5.Replace lubricating oil in gear box every half a year.
6.Keep enough lubrication oil in oil tank and check it regularly;
7.Pay attention to running condition of whole equipment during its working, Stop to check when there is any unusual situation. 8.Notice: Do not whack the gear box.
9.Fire Extinguisher must be prepared at working site and operator should monitor the machine during operation;
10.Operators is allowed to operate after training.

Epsole CNC Hot Wire EPS Styrofoam Cutter Machine

Epsole CNC Hot Wire EPS Styrofoam Cutter MachineEpsole CNC Hot Wire EPS Styrofoam Cutter Machine

Certifications
Epsole CNC Hot Wire EPS Styrofoam Cutter Machine





Company Profile

Epsole CNC Hot Wire EPS Styrofoam Cutter Machine
Epsole CNC Hot Wire EPS Styrofoam Cutter MachineEpsole CNC Hot Wire EPS Styrofoam Cutter Machine

FAQ

1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.

2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.

3. Q: What's the MOQ?
A: Our MOQ is 1 Set.

4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.

5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.

6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.

7. Q: What is the payment terms?
A: T/T, L/C, D/P at sight

8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.

9. Q: What certificate do you have?
A: We have TUV, CCC, CE (EN71, EN14765), SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
