Basic Info.
Product Description

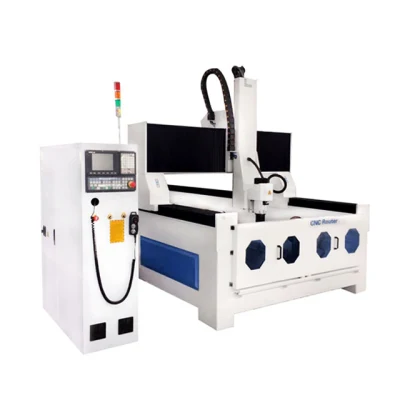

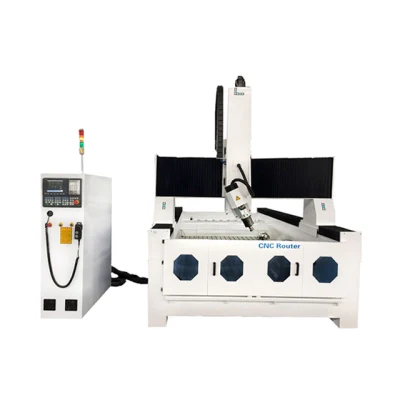

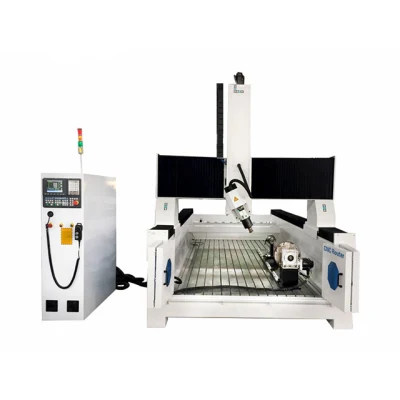

1530 CNC Machining High-Density Urethane EPS Foam Mold Engraving Machine 4 Axis Woodworking CNC Router
Parameters of 4 axis foam/wood engraving machine:
NO. | Model | IG-1530 |
1 | Working area | 1500x3000x500mm |
2 | Working table | Vacuum absorb table with T-slot or Aluminum table |
3 | Spindle | 3kw/4.5kw/5.5kw/6kw air cooling spindle |
4 | Cooling system | Air cooling |
5 | Control system | syntec |
6 | Inverter | Fuling inverter |
7 | Transmission | XY-axis Rack gear,Z-axis ball screw |
8 | Guide rail | Square HIWIN guide rail from Taiwai |
9 | Ball screw | Taiwan TBI ball screw |
10 | Drive system | Servo motor and driver |
11 | Machine body | Square tube welding body |
12 | Limit Switch | Japan Omron |
13 | Electrical components | France Schneider |
14 | Traveling speed | 30m/min |
15 | Working speed | 20m/min |
16 | Control software | Artcam/Type3,other CAD/CAM |
17 | Command code | G Code*.u00*.mmg*.plt |
18 | Voltage | AC220V/380V-50HZ/60HZ |
| 19 | Name | 1530 CNC Machining High-Density Urethane EPS Foam Mold Engraving Machine 4 Axis Woodworking CNC Router |

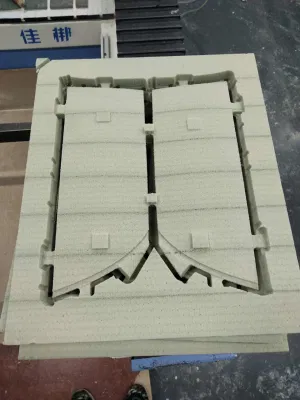

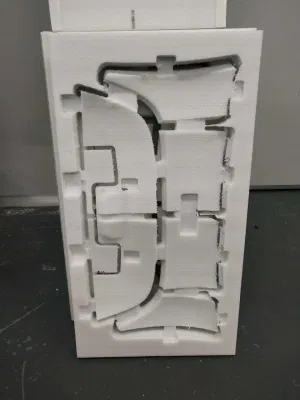

CNC Foam engraving machine application:
Advertising, Lettering, Logos.
Architectural Molding & Stucco.
Packaging for product protection against damages.
Roller Shutter Technology Housing and Insulation.
Construction of Models, 3D Molds and Prototypes.
Packing & Shipping:
Company information:
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing, sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter, etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc. Provide 24 hours online service and overseas service in time!
