CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture

Introducing our cutting-edge CNC Machine Digital Oscillating Knife, designed for precision cutting of sponge, foam, rubber, PVC, leather, cloth, and fabric. As a leading manufacturer, we ensure top-quality textile cutting solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KJZD-1625
Application
Paper, Plastic, Leather, Fabric, Foam, Rubber, Sponge, Cardboard etc.
Power Source
Electric
Layout
Vertical
Pcutting Thickness
0.1-100mm(Depend on Material)
Mechanical Precisio
<0.01mm
Power Supply
110V/220V/380V 50Hz / 60Hz
Supported Software
Coreldraw, Autocad
Model Number
Kjzd-1625
Drive Motor
Delta, Panasonic, Yaskawa, FUJI Can Be Selected.
Cutting Speed
0-1500mm/S
Transmission Interface
Belt Transmission
Supported Format
Pxf Plt
Machine Size
3260*2120*1315mm
Working Area
Infinite Length * 1600mm
Material Fix Mode
VAC-Sorb
Transport Package
Packed in Wooden Cases
Specification
KJZD-1625
Trademark
kangjia
Origin
China
HS Code
8461500090
Production Capacity
100 Sets / Month

Product Description

Automatic Cnc Digital Oscillating Sponge Automatic Knife With Exquisite Workmanship

CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture
 Features:

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Kangjia digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture

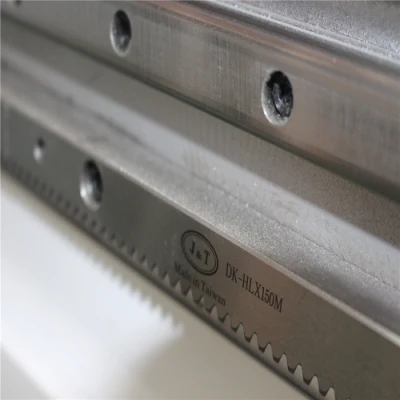

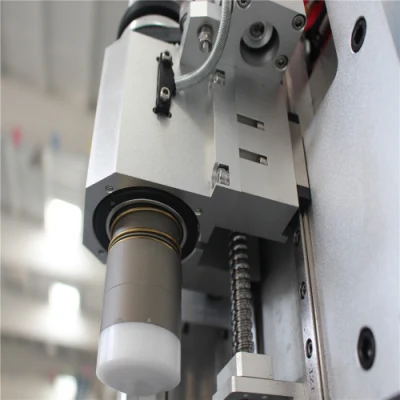

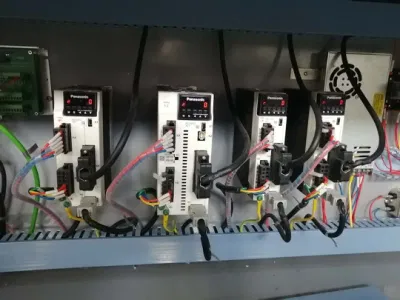

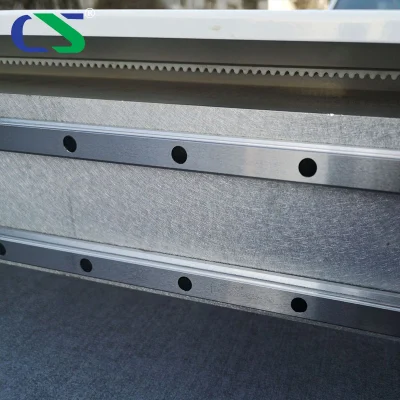

Machine Details:

CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture

Technical Data:
Model 1625/1630/1830/2030, can be customized.
Working area 1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power  7-11KW
Fixed mode Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads can be optional Vibration knife (oscillatory knife)
Circular knife (round knife / rotary knife)
Oblique knife (V-cut)
Marking pen
Punching roller (round punching/v-punching/optional)
Milling knife
Drag knife
Pneumatic knife
Projector and camera optional
Safety device  Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type Auto feeding or manual feeding

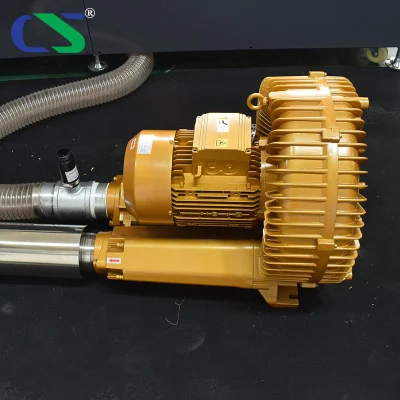

Material fixed type Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity  800-1500mm/s
Cutting speed  Max. 1500mm/s (according to different cutting materials)
Cutting thickess  ≤60mm (according to different cutting materials)
Cutting material  Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy ≤0.1mm
Cutting type Mechanical vibration physical cutting
Transmission / driving system Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail  Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system HP-GL compatible format
Control system  LCD touch screem  ( custom made)
Voltage  110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration  Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Product Advantage:
1. Environmental protection, no smoke & no smell.
2. High Efficiency, the cutting speed can reach max. 1500m/s (per material), save time and worker cost.
3. Beautiful appearance, no yellow edge & rough selvedge after cutting.
4. Multifunctional cutting, support abnormity cutting.
5. Wide range of applications: garment industry, automotive interior (floor mat, seat cover etc.), advertise industry, furniture industry (sofa), leather industry, clothing industry etc.
CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture

Training to install (2options):

A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.

B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.

CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture



Exhibition:

CNC Machine Digital Oscillating Knife Sponge Foam Rubber PVC Leather Cutting Machine Cloth Fabric Cutter Textile Machine Fabric Slitting Machine Manufacture
FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?

Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.

Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
