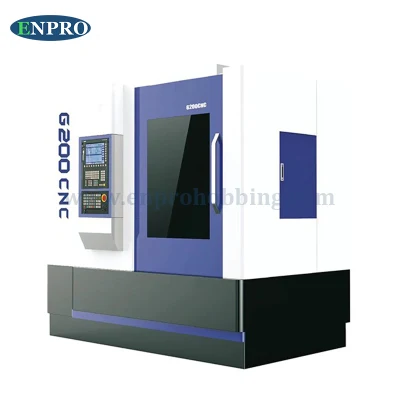

China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing

China G200 CNC Gear Hobbing Machine for cutting 1-4 modules with maximum diameter 200mm. We are a factory specializing in gear cutting technology.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
G200CNC
Trade Term
EXW, Fob, CIF, DAP
Layout
Vertical
Max Module
4
Max Gear Diameter
200mm
Transport Package
Export Wooden Box
Trademark
EnPro
Origin
China
HS Code
84614019
Production Capacity
300-500 Sets/Year

Product Description

This series of high-speed and high-efficiency CNC gear hobbing machine adopts the principle of generation method to realize the hobbing of cylindrical spur gears, cylindrical helical gears (shaft gears, disc gears), worm gears, small taper gears, drum gears, splines, sprockets, synchronous pulleys and other specific tooth types. The main castings of the CNC gear hobbing machine tool are designed with double-wall and high-rib plate structure, and through finite element analysis, it can not only ensure the overall rigidity of the CNC gear hobbing machine but also take into account the stability of the CNC gear hobbing machine. This series machine Received unanimous praise from Chinese and international customers.

        • The CNC gear hobbing machine has three configurations of 5-axis, 6-axis and 7-axis for option.
        • The cutter bar adopts hydraulic pressure to automatically tighten and relax, which is convenient for users to change tools and shortens the time for tool adjustment.
        • The X and Z axes of CNC gear hobbing machine adopt high-rigidity rolling linear guide rails, which make the guide rails of the CNC gear hobbing machine maintain long-term accuracy and long service life, and facilitate later maintenance.
        • The C-axis of CNC gear hobbing Machine is driven by a high-precision motor, which ensures the indexing accuracy of the worktable and provides strong cutting force for gear hobbing.
        • The Y-axis of CNC gear hobbing Machine is directly driven by a servo motor to ensure the precision of the tool shifting and prolong the service life of the tool, while ensuring the overall cutting rigidity of the CNC gear hobbing machine.
        • The top guide rail of CNC gear hobbing Machine is a high-precision line rail, and is equipped with an oil cylinder to drive the top movement, ensuring the movement accuracy of the top guide rail and the convenience of CNC gear hobbing machine adjustment.
        • The processing area of CNC gear hobbing machine is equipped with stainless steel inner protection, which completely separates the processing area and facilitates chip removal.
        • Precise secondary tooling setting device for precise secondary hard scraping of hard tooth surface is for option for CNC gear hobber.
        •
Equipped with a rotating top tailstock center, avoiding the wear of the center hole when using the fixed tailstock center, and enhancing the rotation accuracy of the tailstock center.
China G160 CNC Gear Hobbing Machine
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing China G200 5 Axis 6 Axis 7 Axis Vertical Spiral Bevel Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Making
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
Model / G200CNC
Max.workpiece diameter                    mm 200
Max.module                           m 4
Max.hob shift travel (Y axis)   mm 125
Max.axial feed travel (Z axis)  mm 300
Distance between worktable and top tailstock center  mm 350-680 (ajustable)
Worktable diameter    mm 200
Max.hob head swivel   ° ±45°
Max.speed of hob shaft (B axis)    r/min 2200
Max. speed of worktable (C axis)  r/min 265
Total power      kw 35
Total weight  kg 7100
External dimension(LxWxH)   mm 2560x2680x2800

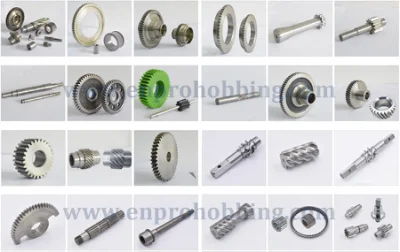

Processing Case of CNC Gear Hobbing Machine

China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
 Models of CNC Gear Hobbing Machine
G100CNC G100CNC-B G160CNC G200CNC
G300CNC G400CNC G500CNC G800CNC

China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
Q: What's your main product?
A:  CNC Gear Hobbing Machine.

Q: How about your machine experience?
A:  More than 20 year hobbing machine experience, more than 10 year CNC gear hobbing machine production experience.


Q: Can we test the gear samples on your machine before place order?
A: Yes. We can take the test video and send back samples to you after test, you can also come to our factory for inspection.


Q: How do we purchase machine from you?
A: 30% order deposit, balance paid before shipment. We can deliver the machine to your forwarder agent in China, or shipping the machine to your nearest port.
Door to door shipment need base the country and delivery address.




China G200 5 Axis 6 Axis 7 Axis Vertical Spur Spiral Helical Wheel Worm CNC Gear Hobbing Machine for Cutting 1-4 Modules Maximum Diameter 200mm Teeth Processing
