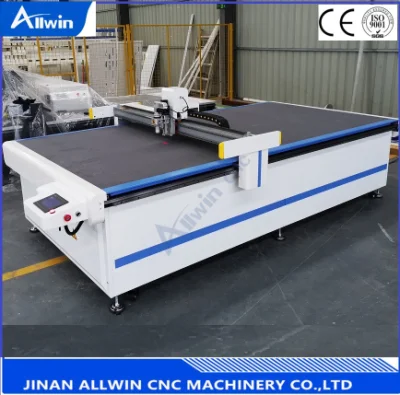

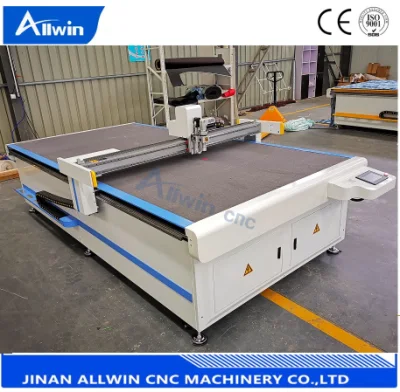

Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutter

Get precise and efficient fabric cutting with our Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutter. Perfect for factory production. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
2516 1325
Automatic Grade
Automatic, Automatic
Warranty
2 years, 2 Years
Certification
CE, ISO
Placing Form of Template
Horizontal
Computerized
Computerized
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-Proof Material, EMI Shielding Materials
After-Sales Service
Online and Factory Training
Species
Oscilating Knife
Imprinting Type
Cutting
Die Cutting Tool
Non Steel
Controlling System
Ruida or Mpg
Motor and Driver
Delta Servo
Working Area
2500mmx1600mm
Safety Device
Infrared Sensor
Cutting Material
Corrugated Paper
Material
EPE Foam
Buffer Memory
2GB
Transmission System
Straight Rail&Guide Screw
Numerical Control Panel
En LED Touch Screen
Transport Package
Plywood
Specification
1625
Trademark
ALLWIN
Origin
China
HS Code
8456909000

Packaging & Delivery

Package Size
370.00cm * 225.00cm * 170.00cm
Package Gross Weight
1100.000kg

Product Description

Machine advantages
ALLWIN CNC oscillating knife cutting machine, your professional choice for cutting 5D/7D car mat.
Our machine recognize DXF/PLT format from computer, dieless cutting supply the most flexibility, it can cut any shapes and sizes quickly and perfectly.
Also, there's no need for the machine to rest or cooling, 24 hours continuous and efficient working is promised.
It can cut low-layers at one time, or cutting unlimited in length with auto feeding and cradle.
Physical cut don't react with materials, so no smoke and smell will produce during cutting.
Our machine is easy to learn and operate.
Future maintain is easy and safe.

specification for digital plotter cutting machine factory price
Model no. ALLWIN-2516VA
Working area  2500×1600 mm(L*W)   (accept customization)
Machine size 3355x2410x1250 mm(L*W*H)
Cutting thickness 0.1-25.0 mm (depend on material)
Cutting precision 0.1mm
Max cutting speed 1200 mm/s (depend on material)
Transmission interface Ethernet
Rated power 11KW
Working voltage AC 110V 220V 380V±10%, 50HZ
Fixed type Intelligent vacuum adsorption
Drive system Servo motor, linear guide rail, rack and pinion
Safety device Infrared sensors, 4 emergency stop buttons
Control panel Liquid crystal display
Cutting extent Through-cut
Standard configuration Oscillating cutting tool, red light pointing, auto feeder
Optional configurations Driven rotary cutting tool, punching tool (V-shape or circle shape), drawing tool, CCD camera, scanner, cradle(auto or normal), package box
Operating characteristic Work offline; 24 hours continuous and efficient working
Cutting material   All kinds of corrugated paper, grey cardboard, KT board, PVC expansion sheet, honey  comb plate,  light slide,  PP gum, car sticker, flag  fabric, EPE foam, foam, arcylic  etc.
Effective Cutting Area   2500mm*1300mm                  2500mm*1600mm                   1100mm*1300mm                   1800mm*1600mm

Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutter
Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter CutterAutomatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cuttercutting sample:
Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutterour certificate:
Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutter
Features--Vibrate Knife Cutting Machine

1.Laser emergency stop device, four laser beams, as long as the laser beam is blocked, the machine automatically stops working, to avoid the human body being touched by the moving tool head or cardboard raised and stuck the tool head. The signal line is placed in the crossbeam of the nose, so the machine runs more stably.

2.Taiwan's imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.

3.The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.

4.The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.

5.Motors and drives adopt Taiwan Delta driver and all motors are fully digital.

6.With modular working cylinder, the table surface has strong adsorptive force.
Automatic Flatbed Fabric Cutting Machine 2516 Digital Plotter Cutter
