20 Feet Long Mild Steel Sheet Cutting Machine

Looking for a 20 feet long mild steel sheet cutting machine? Our factory offers high-quality machines for all your cutting needs. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
HG-10X6000
Condition
New
Warranty
2 Years
Control Panel
Estun E21s
Max Cutting Length
6000mm
Max Cutting Thickness
10mm for 6m Sheet
Angle Adjustment
Controlled Through System
Weight
24000kg
Cutting Angle
0.5-2 Degree
Frequency Converter
Delta
Ball Screw
Hiwin/Tbi
Main Motor
Siemens
Power
15kw
Transport Package
40hq
Specification
6500× 2100× 2300mm
Trademark
LZK
Origin
Maanshan, Anhui Province, China
HS Code
8462391000
Production Capacity
100 Sets/Month

Product Description

20 feet long mild steel sheet cutting machine
Product Description

20 Feet Long Mild Steel Sheet Cutting Machine

Guillotine shearing machines are used in industries such as automobiles, tractors, rolling stock, ships, motors, and meters, as well as in the power industry and aerospace industries such as metal sheet stretching, bending, extrusion, forming and other processes. It is also suitable for drawing work of various high-strength alloy plates.
The guillotine shearing machine realizes angle adjustment by quickly adjusting the oil volume of the upper and lower chambers of the two engineering cylinders: the shearing angle is enlarged, the shearing capacity is increased, the shearing angle is reduced, the shearing speed is increased, and the bending of the sheet is reduced;
The guillotine shearing machine adopts the frame structure and adopts all-steel welding; four corners and eight faces right-angle guide rails, high precision, good rigidity, and hydraulic pre-tensioning

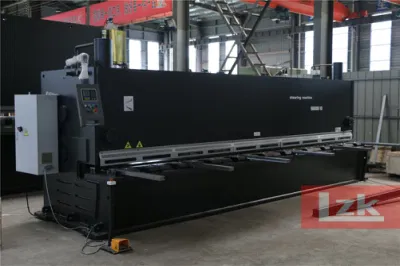

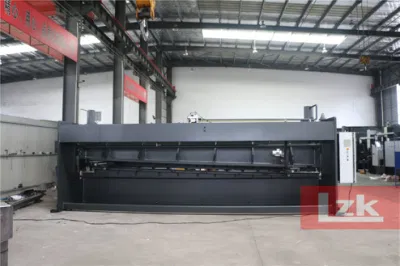

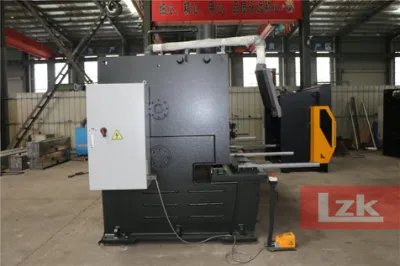

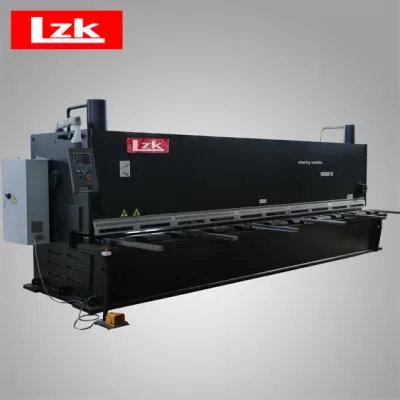

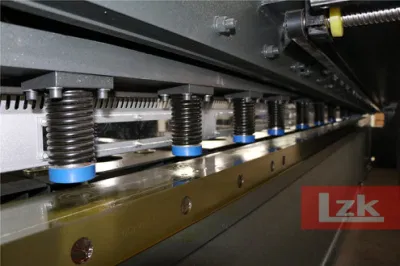

Detailed Photos

20 Feet Long Mild Steel Sheet Cutting Machine20 Feet Long Mild Steel Sheet Cutting Machine20 Feet Long Mild Steel Sheet Cutting Machine20 Feet Long Mild Steel Sheet Cutting Machine

Product Parameters
Model HG-10X6000
Cutting thickness 10mm
Cutting length 6000mm
Angle range 0.5-2 degree
Back gauge stroke 750mm
Approx. weight 24000kg
Size 7000x2100x2300mm
