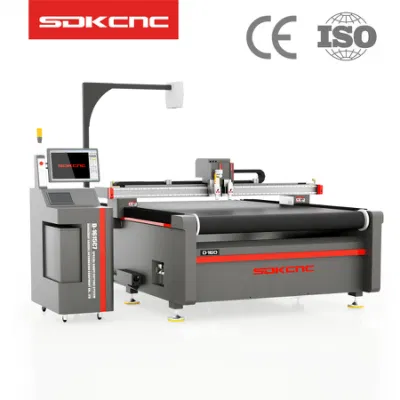

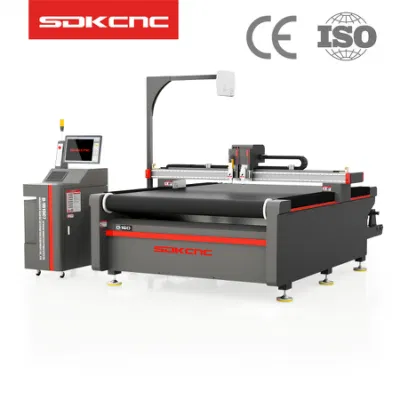

1615 Size Digital Cutting Machine for Flexible Materials with Projector

Get precise and efficient cutting for flexible materials with our 1615 Size Digital Cutting Machine with Projector. As a factory, we offer high-quality equipment for your cutting needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Application Industry
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
D-1615C7(GEN 2)
Knife Type
Universal Tool Holder
Condition
New
After-sales Service
Online Service
Working Mode
Flexible Material Edge Patrol Cutting
Drive Motor
AC Servo Motor
Transmission
Linear Guide Rail &Grinding Level Helical Gear
Homtool Holder
Double Universal Tool Holder
Support Tool Type
Oscillating Cutter/ Indentation Tool /Half Cutter
Reducer
Hi Precision Reducer
Cutting Material
Car Sticker/Reflective Film/Leather/Carpets/Garmen
Standard Cutting Tools
Oscillating Knife and Trailing Blade
Working Table
Aluminum Alloy Vacuum Suction Clip +Felt Roller Fe
Voltage
220V or 380V
Control System
Industrial Edge Patrol Motion
Structure
Steel Structure Bed+Cast Aluminum Crossbeam
Transport Package
PE Film or Wooden Cases
Trademark
SDKCNC
Origin
China
HS Code
8465209000
Production Capacity
550/Year

Product Description



D-1615 C7 Digital cutting machine for flexible materials with Projector

Product Description

1615 Size Digital Cutting Machine for Flexible Materials with Projector
Δ  D-1615C7 is a roller feeding Hi-speed shaped cutting machine independently developed and produced by SDKCNC.It is an efficient guide belt cutting machine for flexible materials with Projector.

Δ  With standard configuration of hi-efficiency electric oscillating knife & straight knife and the universal tool holder.It can be equipped with pneumatic oscillating knives,crossing wheel tool,V-cut tool ,kiss cut tool and function of felt roller feeding .

Δ  It can fastly finish steps of full cutting ,half cutting ,perforating ,creasing ,contour recognition cutting and other processes.Widespread usage of industry like advertising logo,print packaging ,garment samples,shoes&bags ,car decaration ,textile&home decaration,sealing gasket,carpet mats and so on .

1615 Size Digital Cutting Machine for Flexible Materials with Projector
1615 Size Digital Cutting Machine for Flexible Materials with Projector
01   BED STRUCTURE

Welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling

High-strength cast aluminum crossbeam
02   TRANSMISSION

Transmission:X/Y-axis with  helical rack & linear guide rail,Z-axis with mute screw
1615 Size Digital Cutting Machine for Flexible Materials with Projector
1615 Size Digital Cutting Machine for Flexible Materials with Projector
03   DRIVE MODE

The whole machine adopts AC servo drive,Y-axis dual motor drive,
04   UNIVERSAL TOOL HOLDER

This facility have double tool holder which can adopts different cutter for different materials .
Tool holder can support oscillating cutter ,kiss cutter ,round cutter and so on
1615 Size Digital Cutting Machine for Flexible Materials with Projector
1615 Size Digital Cutting Machine for Flexible Materials with Projector
05   CCD SYSTEM

the positioning status is based on optical system of high definition ccd camera

automatically pick up the contour

07   FELT +ROLLER FEEDING TABLE

The facility adopts felt+roller feeding system which improve efficiency for bulk materials in continuous processing
1615 Size Digital Cutting Machine for Flexible Materials with Projector
1615 Size Digital Cutting Machine for Flexible Materials with Projector
08 PROJECTION POSITIONING SYSTEM

Projection of the machining pattern onto the machined material

Product Parameters


Technical Parameter
Working Area
1600 x 1500 mm
Repeat position accuracy
±0.01 mm (Depending on the cutting tool)
Tool holder
double universal tool holder
Support tool type
oscillating cutter/ indentation tool /kiss cutter etc
Working mode
  Flexible material edge patrol cutting with Projector
Control system
6-8 Axis Control System
Feed mode
  Felt roller feeding system (automatic)
Drive motor
AC Servo Motor + Reducer
Type Name
D-1615 C7(GEN 2)
Working Table
Felt +roller feeding table
Vacuum Pump
5.5KW

Application Industry

1615 Size Digital Cutting Machine for Flexible Materials with Projector
Δ  Suitable for high-speed cutting of flexible materials such as leather, fabric, paper, self-adhesive, self-adhesive, etc. Especially suitable for high-speed processing of large quantities of coil materials

Δ  Widespread usage of industry like advertising logo,print packaging ,garment samples,shoes & bags ,car decaration ,textile & home decaration,sealing gasket,carpet mats and so on .

Packaging & Shipping

1615 Size Digital Cutting Machine for Flexible Materials with Projector

1615 Size Digital Cutting Machine for Flexible Materials with Projector

Company Profile

1615 Size Digital Cutting Machine for Flexible Materials with Projector

Our Advantages

1615 Size Digital Cutting Machine for Flexible Materials with Projector1615 Size Digital Cutting Machine for Flexible Materials with Projector

FAQ

 Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.


Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.
